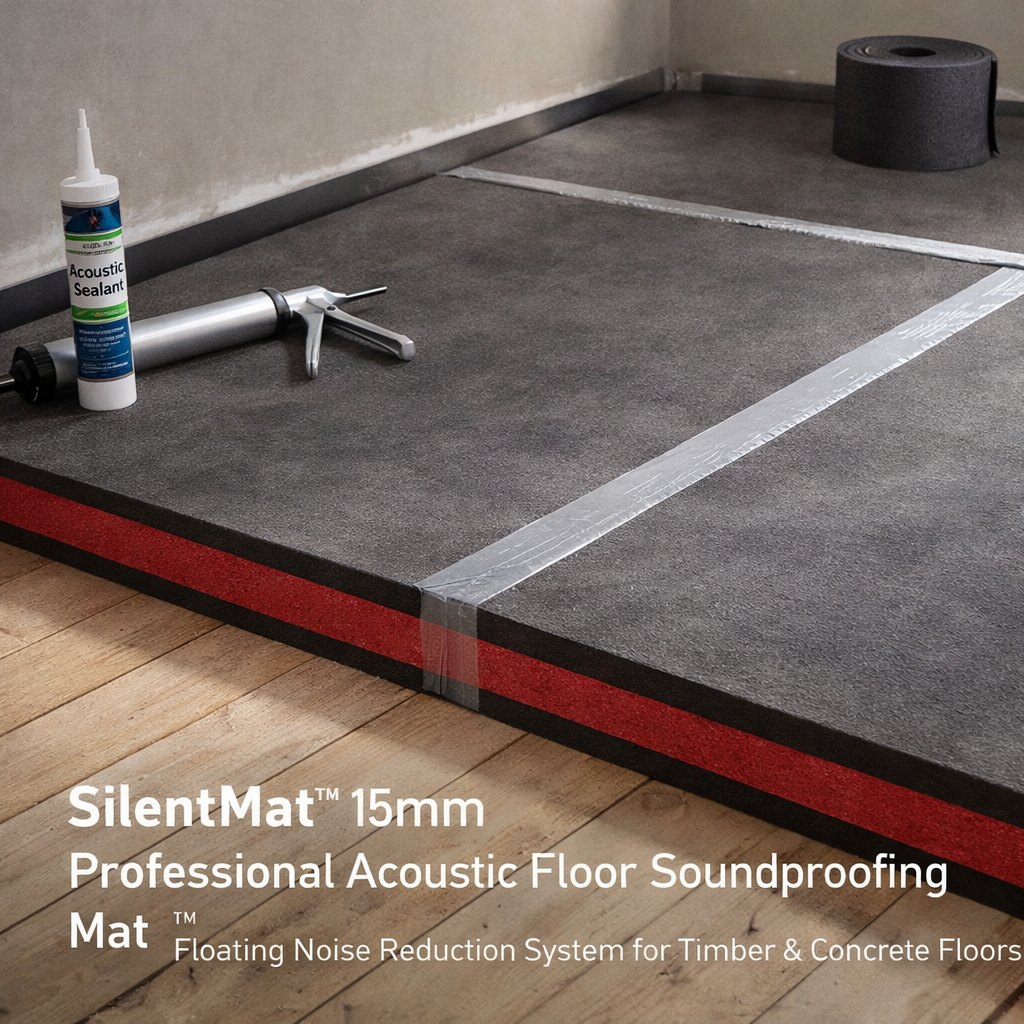

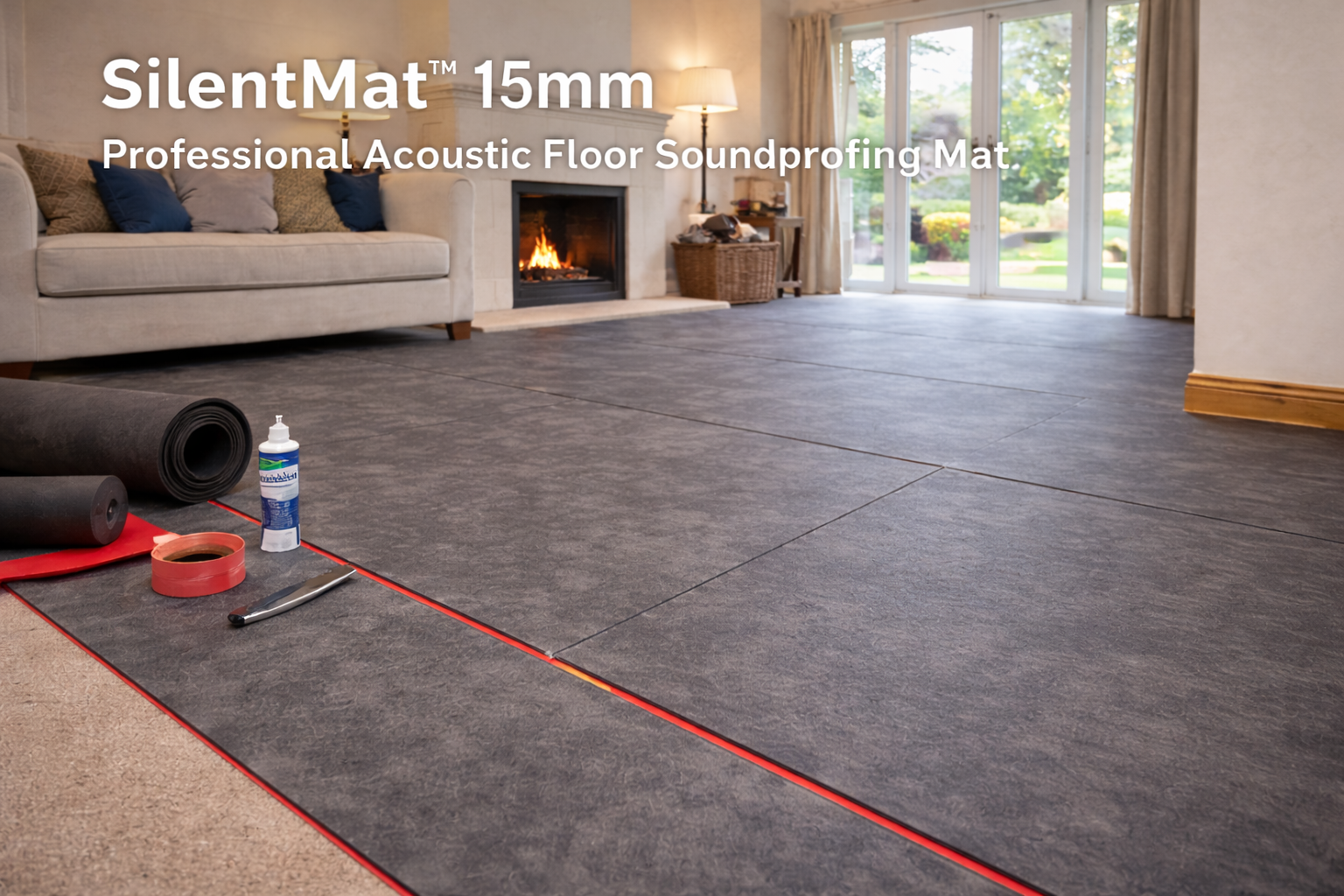

SilentMat 15mm Acoustic Noise Reduction Mat

filler

Price:
Sale price£84.30

In Stock

Ship Same OR Next Day

Description

Click to View / Download Product Specification Guide

Introducing the SilentMat 15mm an unparalleled soundproofing mat meticulously designed to minimize both unwanted impact and airborne noise. Specifically tailored for carpet final floor finishes, this thin yet highly effective solution is engineered to bring peace and quiet to your home.

Key Features:

Features:

- Ideal solution for superior noise control in various developments

- Specifically designed for timber floors, but can also be applied to concrete floor constructions
- Features a sandwich laminate composed of two layers
- Effectively reduces impact sound
- Enhances airborne sound performance
- Cost-effective, flexible, and easily cut to size
- Thin tiles for convenient handling
- Compatible with a wide range of final floor finishes

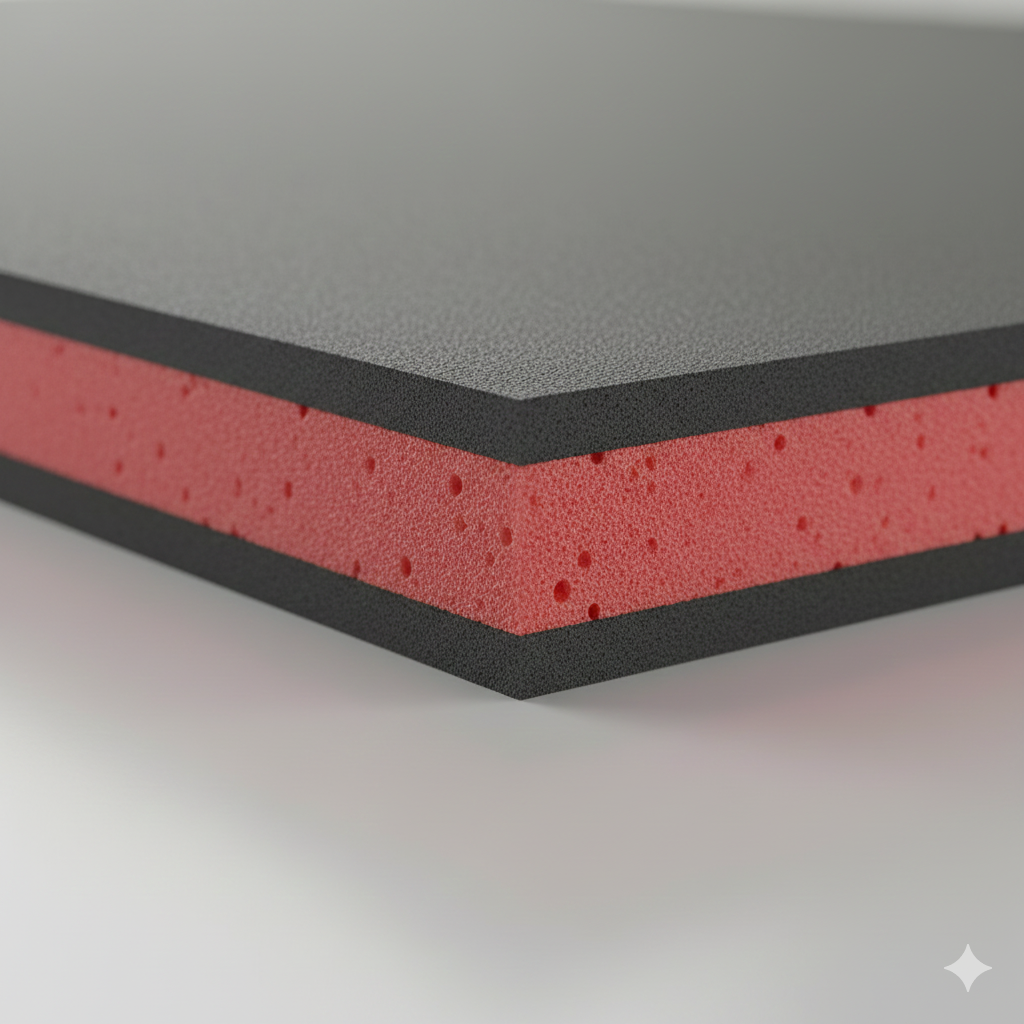

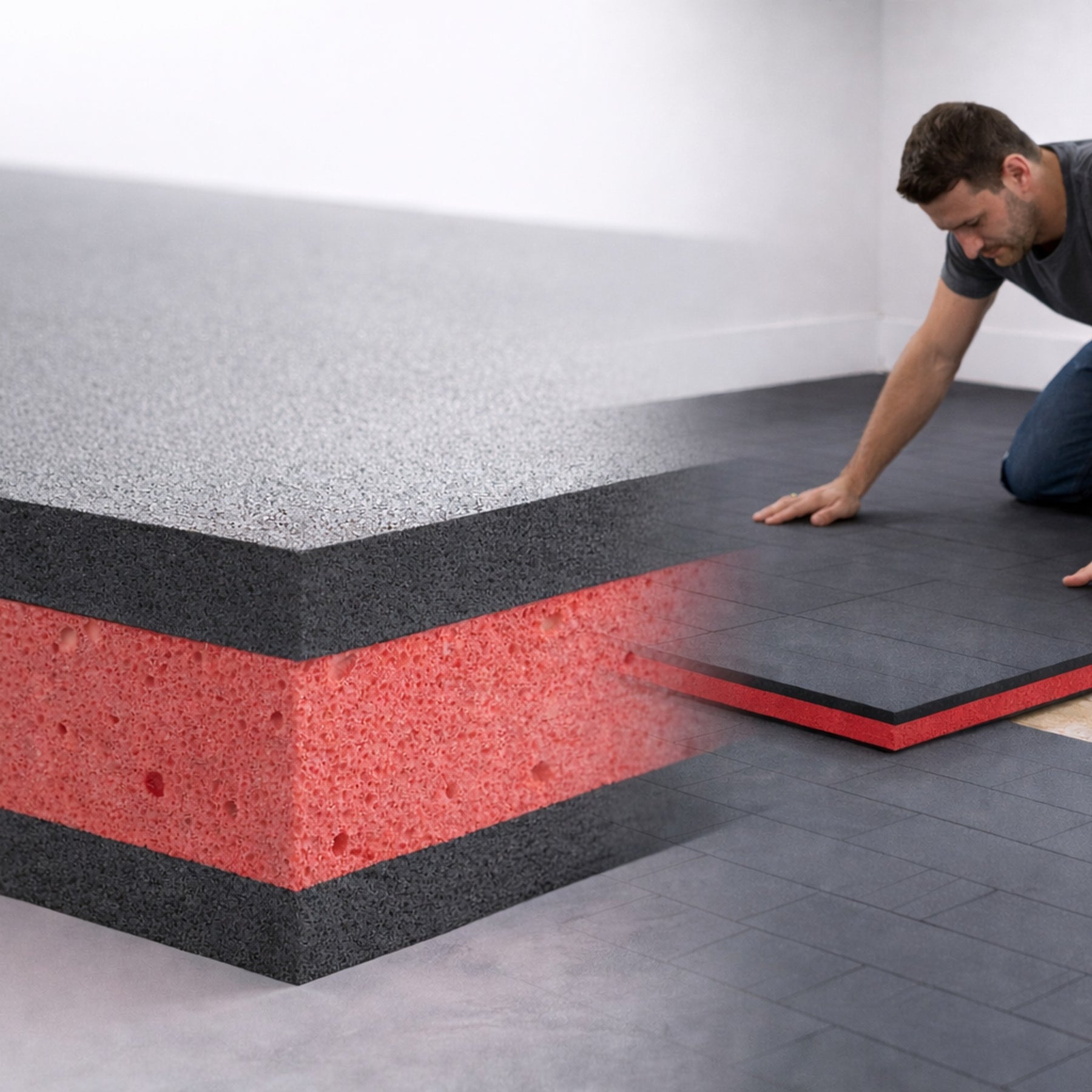

Incorporating three layers of sound reduction engineering, this system includes:

  1. 3mm Mass Loaded Vinyl (MLV):

    • High mass acoustic barrier designed to effectively block airborne noise.
  2. 9mm Closed Cell Foam:

    • Dampens sound energy and vibrations, providing mitigation for impacts such as footsteps.
  3. 3mm Mass Loaded Vinyl (MLV):

    • A second layer of high mass to further enhance airborne noise blocking.

Specifications:

  • Total Thickness of System: 15mm
  • Size: 1500mm x 1200mm x 1200mm
  • Weight: 23kg per mat (16kg per m²)
  • Water: Non-absorbent
Thermal Conductivity:
  • MLV: 0.037 W/mK
  • 9mm Closed Cell Foam: 0.039 W/mK
Thermal Resistance:
  • MLV: 0.095 m² K/W
  • 9mm Closed Cell Foam: 0.23 m² K/W
Fire:
  • MLV: Surface spread of flame tested to ISO 3795 and FMVSS 302 – Self Extinguishing
  • 9mm Closed Cell Foam: FMVSS 302

Performance:

Tested on a timber subfloor with one layer of plasterboard directly fixed to the underside of joists.

Airborne Performance: (Higher figures indicate better performance)

  • Sound Transmission Class (STC): 51dB (DnT,w)
  • Weighted Sound Reduction Index (Rw+Ctr): 43dB (DnT,w+Ctr) - Includes correction for low-frequency performance.

Airborne sound reduction of untreated timber floor:

  • STC: 38dB (DnT,w)
  • Rw+Ctr: 25dB (DnT,w+Ctr)

Airborne improvement with treatment:

  • STC Improvement: 13dB (DnT,w)
  • Rw+Ctr Improvement: 18dB (DnT,w+Ctr)

Impact Performance: (Lower figures indicate better performance)

  • Impact Sound Transmission Class (LNT,w): 51dB

Impact sound reduction of untreated timber floor:

  • LNT,w: 82dB

Impact improvement with treatment:

  • LNT,w Improvement: 31dB

Concrete Floor Performance:

Tested on a 200mm concrete slab.

Impact Performance: (Lower figures indicate better performance)

  • Impact Sound Transmission Class (LNT,w): 47dB

Impact sound reduction of untreated concrete floor:

  • LNT,w: 76dB

Impact improvement with treatment:

  • LNT,w Improvement: 29dB
