Description

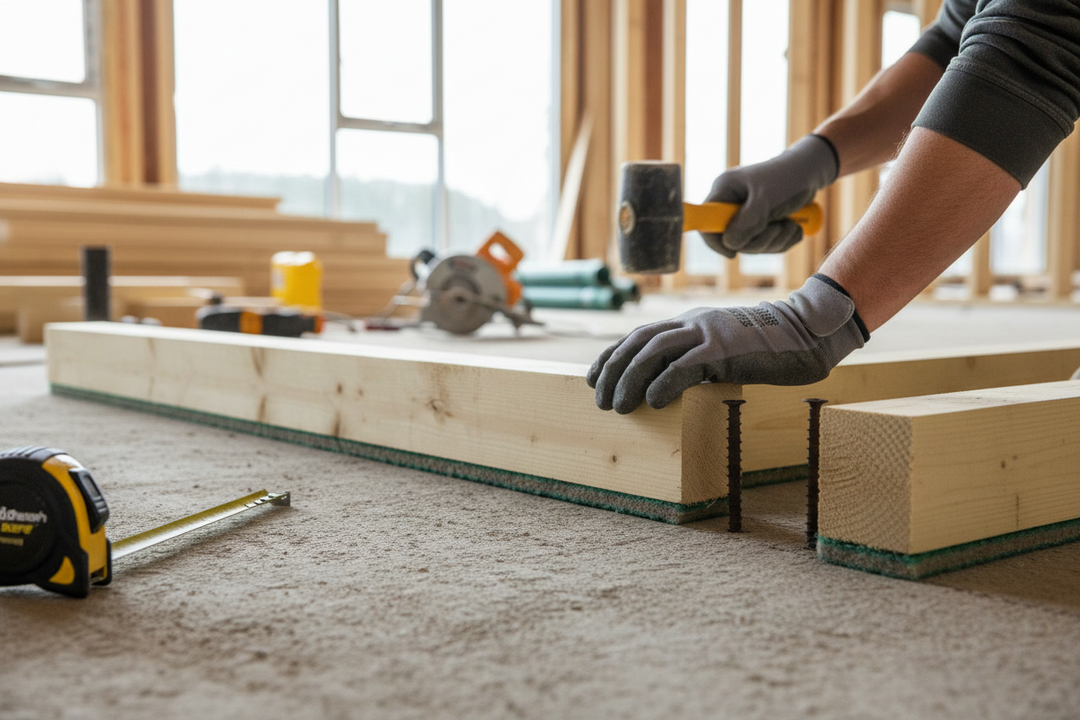

What is the Premium 75mm Composite Batten?
The Premium 75mm Composite Batten is expertly designed as a resilient composite solution to facilitate the construction of service voids. It significantly reduces impact sound transmission while providing durable support for floating timber or chipboard floors.
The batten consists of treated timber measuring 65mm x 45mm bonded to a 10mm resilient layer, ensuring excellent performance in sound insulation applications.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Impact Rating | 55dB L nTw |
| Airborne Rating | 56dB L nTw +C tr |
| Thickness | 75mm |
| Sheet Dimensions | 1.8m x 75mm x 45mm |
| Maximum Centres | 450mm with 18mm chipboard, 600mm with 22mm chipboard |
This product is ideal for use in scenarios requiring effective impact sound insulation between separating floors, providing a minimum of 70mm void as required for robust details. It is also suitable for timber frame developments.
For instance, in a room measuring 3.6m x 3.6m using 18mm chipboard, you would require approximately 14 units of the Premium 75mm Composite Battens.
Technical Specifications
- Resilient layer thickness: 10mm
- Treated timber dimensions: 65mm x 45mm x 1800mm
- Designed for floating timber and chipboard flooring
- Durable and long-lasting support
FAQ
What is the purpose of the Premium 75mm Composite Batten?
It is specifically designed to reduce impact sound transmission and provide support for floating timber or chipboard floors.
What are the recommended maximum centres for installation?
Maximum centres are 450mm when using 18mm chipboard and 600mm when using 22mm chipboard.
How many battens would I need for a standard room?
For a room of dimensions 3.6m x 3.6m using 18mm chipboard, approximately 14 battens are recommended.
