Product Overview
This Premium 5mm self-adhesive flexible foam liner is designed specifically for vehicle heat and sound insulation when applied over sound deadening materials. Its unique closed cell foam formulation provides superior thermal insulation and acoustic absorption, all within a low-profile design.
Benefits
- Acts as a thermal insulating layer to stabilize vehicle cabin temperatures throughout the year.
- Maintains shape under pressure while remaining flexible enough for easy trimming.
- Water and high-temperature resistant, ensuring durability and safety.
- Flame retardant to meet vehicle safety standards.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Sheet/Roll Size | 500cm x 50cm |
| Pack Coverage | 2.5 sq.m / 26.9 sq.ft |
| Thickness | 5mm |
| Temperature Range | -40°C to +100°C |
| Thermal Conductivity | 0.033 W/mK |
| Flammability Standard | FMVSS302 |
| Material Type | Flexible closed cell nitrile elastomer |
Applications

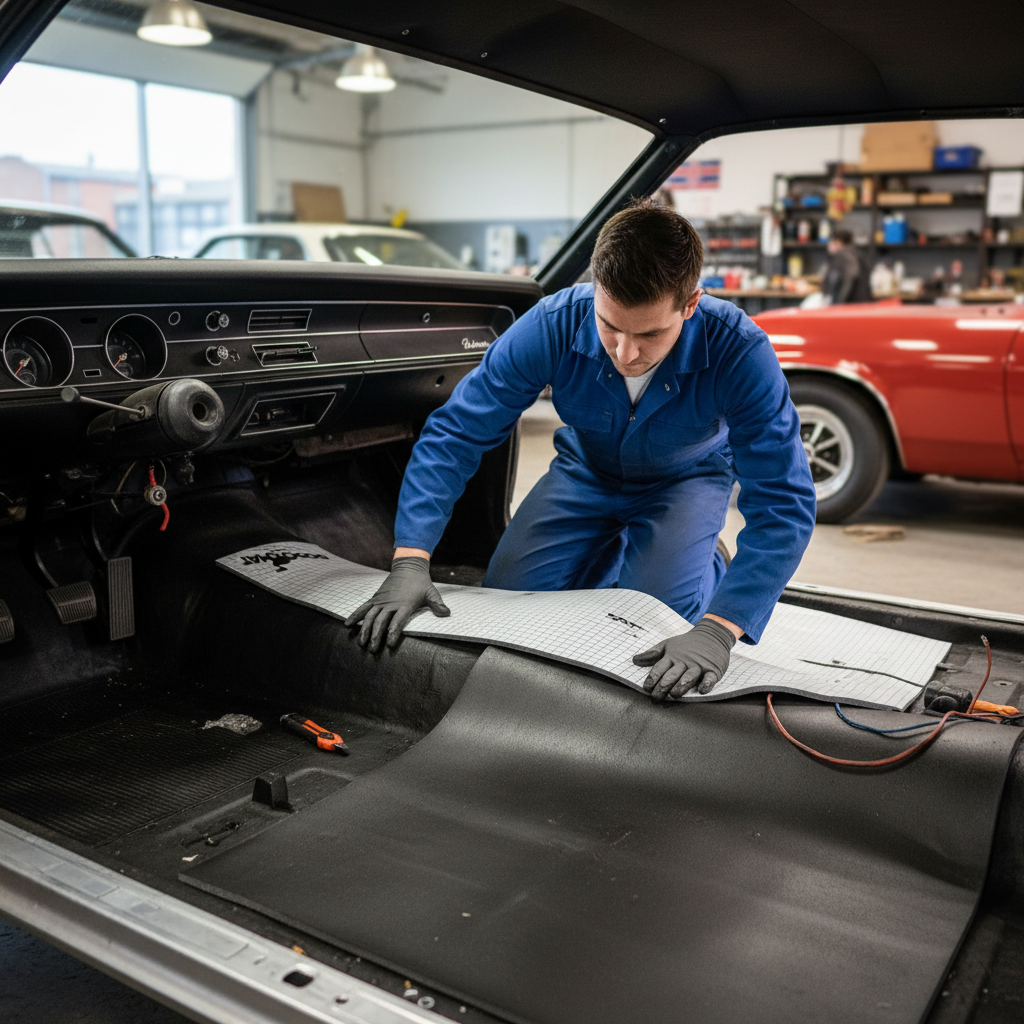

- Fitting to vehicle panels to reduce road noise and enhance cabin insulation.

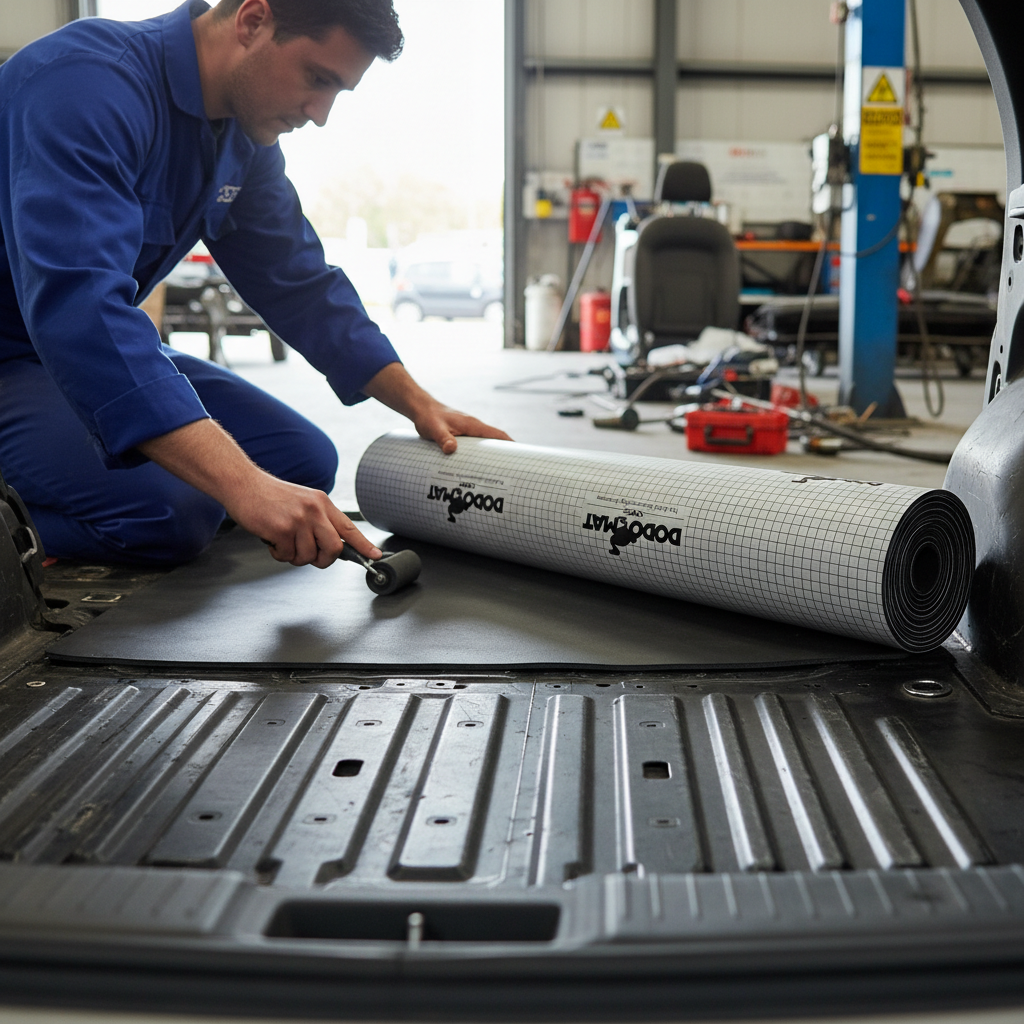

- Lining vehicle floors as a low-profile insulation underlay.
Technical Specifications
- Self-adhesive for easy installation.
- Water-resistant foam rubber for added durability.
- Absorbs, insulates, and isolates sound and heat.
- Smooth black finish for aesthetic appeal.
FAQs
Q: Is the liner easy to cut and fit?
A: Yes, the liner is flexible and can be easily trimmed to fit various vehicle areas.
Q: Can this liner be used in extreme temperatures?
A: Yes, it is designed to withstand temperatures ranging from -40°C to +100°C.
Q: How does the thermal insulation work?
A: The closed cell foam formulation provides excellent thermal insulation by minimizing heat transfer.
