Description
Product Overview
The Premium Adjustable Cradle flooring system is designed to reduce impact sound transmission on uneven or cambered concrete floors. This innovative system provides exceptional acoustic performance while ensuring compliance with building regulations.
Key Features
- 30 cradles per box
- Compatible with underfloor heating systems
- Adjustable plastic cradle with recycled plastic thread for precise levelling
- Optional blocks for additional height adjustment
- Designed for use over hollow core, in-situ, or supported metal deck concrete floors
Applications

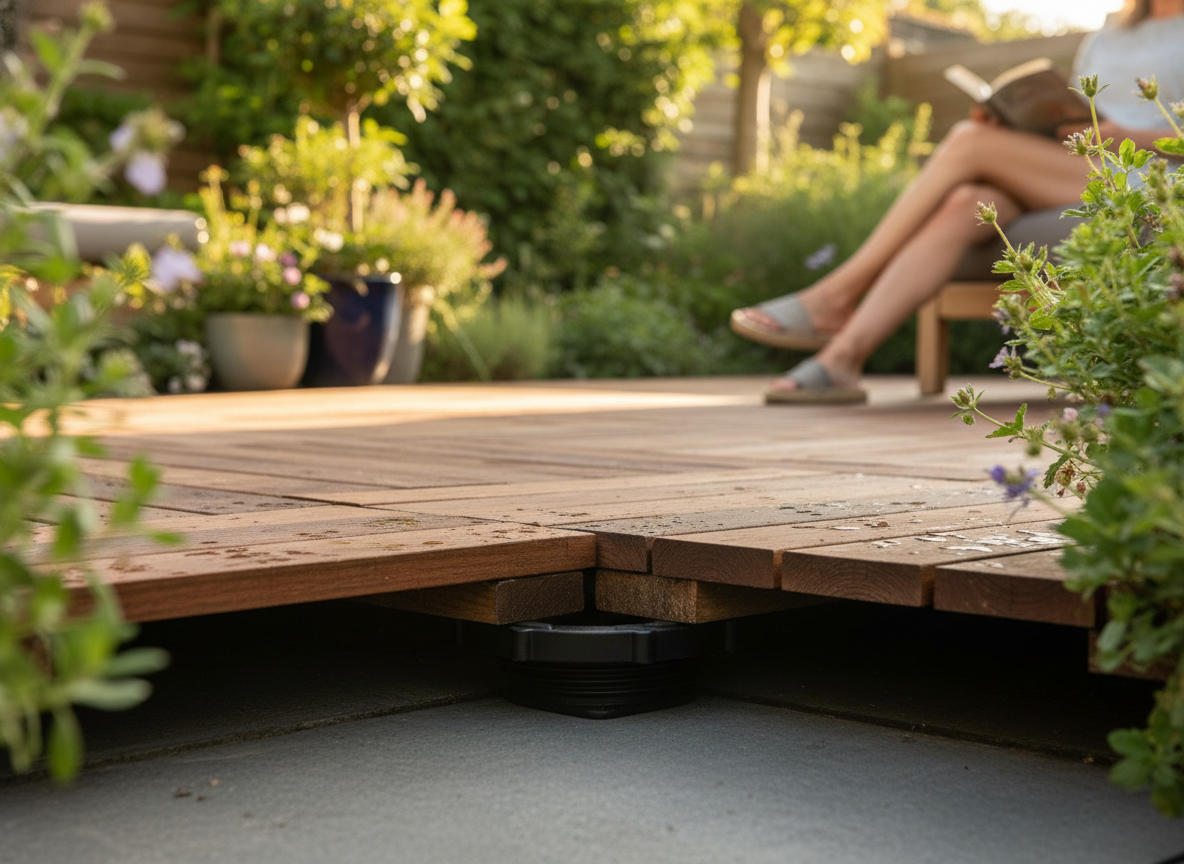

This system is ideal for new builds or conversions, providing versatility in various construction scenarios. It is especially beneficial for flat roof terraces, allowing for a usable terrace area while ensuring proper drainage with a minimum 1:80 fall to prevent water ponding.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Cradle Diameter | 128.4mm |
| Cradle Height | 70mm |
| Minimum Raise | 20mm (without elevating block) |
| Maximum Raise | 56mm (without elevating blocks) |
| Resilient Layer Size | 90mm x 90mm x 6mm |
Technical Specifications
- Enhances sound quality and reduces noise transmission
- Meets New Build Robust Detail descriptive FFT2
- Compatible with Robust Details E-FC-1, E-FS-1, E-FC-2, and E-FC-7
FAQs
Q: Can the cradle be used with underfloor heating?A: Yes, the Premium Adjustable Cradle is designed for compatibility with underfloor heating systems.
Q: What is the minimum and maximum raise for the cradles?A: The minimum raise is 20mm and the maximum raise is 56mm when not using elevating blocks.
Q: Is this system suitable for flat roof terraces?A: Yes, this system is perfect for flat roof terraces, providing a usable terrace area while ensuring proper drainage.
