SilentCloud Acoustic Isolation Clips – Box of 100

SilentCloud Acoustic Isolation Clips – Box of 100

Overview

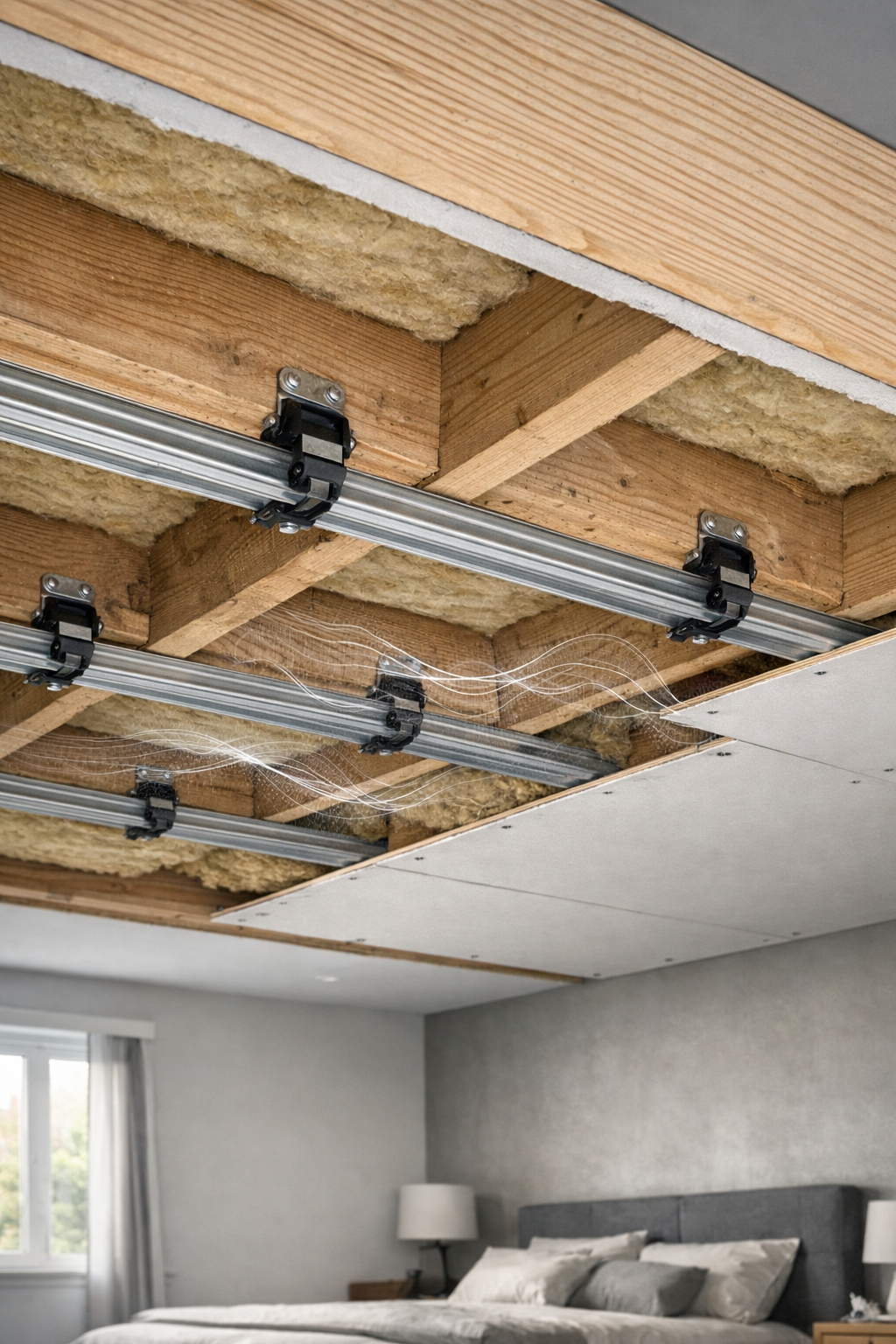

SilentCloud Acoustic Isolation Clips are premium unibody clips made from moulded rubber and galvanised steel. They decouple plasterboard from ceiling joists or wall studs, interrupting the transmission of sound and vibration. They deliver exceptional airborne, impact and low-frequency noise reduction and are fully compliant with UK Part E Building Regulations.

Key Benefits and Features
- Superior sound isolation across all frequencies – reduces noise transmission by up to 65 dB in walls and 55 dB in ceilings.
- Engineered low-frequency performance – outperforms standard resilient channels by 4–5 dB at 100 Hz, ideal for home cinemas, studios and drum rooms.
- Unibody moulded rubber & steel body – eliminates installation errors associated with two-piece systems; channels simply snap into the clips.
- Single-screw fixing – each clip attaches with one screw to wood, steel or concrete substrates, saving time on site.
- Impossible to short-circuit – rubber isolation layer prevents metal-to-wood contact, ensuring consistent acoustic performance.
- High load capacity – each clip supports up to 16 kg; three clips per square metre provide a design load of 48 kg/m².
- Compact depth – adds only ≈46 mm to the wall or ceiling depth.
- Manufactured from recycled materials and supplied with a lifetime warranty.

Technical Specifications
- Dimensions: 40 × 24 × 63 mm
- Weight: Approx. 40 g per clip
- Maximum clip spacing: 1200 mm on the furring channel
- Maximum channel spacing: 609 mm centres
- Recommended channel gauge: 25 g hemmed-edge hat channel
- Operating temperature range: -40 °C to +115 °C
- Compliance: Exceeds UK Part E airborne and impact sound insulation requirements

Applications
SilentCloud Acoustic Isolation Clips are versatile and can be used for walls and ceilings in home cinemas, music rooms, flats, offices, and industrial spaces. They are ideal for use with 25 mm or 50 mm acoustic insulation in the cavities, decoupling the plasterboard lining from the frame to reduce sound transmission.

Coverage & Quantity
- Box of 100 clips covers approximately 33 square metres when spaced 1200 mm on the furring channel and 609 mm between channel rows.
- For optimum performance, three clips per square metre are recommended.

Complementary Products
- SilentCloud Hat Channels (Top-Hat Channels) – recommended for use with the clips.
- Sound Deadening Mineral Wool Insulation.
- Acoustic Sealant & Isolation Tape.

Installation Summary
1. Mark the clip positions on the joists/wall studs at 1200 mm intervals along the channel path and 609 mm between channel rows.
2. Fix the SilentCloud clips directly into the timber, steel or concrete substrate using appropriate screws (wood, steel or masonry), ensuring the rubber isolation pad sits flush against the structure.
3. Snap the galvanised steel hat channel into the clips, running perpendicular to the joists/studs.
4. Fill the cavity with mineral acoustic insulation.
5. Fix two layers of plasterboard to the channels using suitable drywall screws.

Please note: Always follow applicable building regulations and installation guidelines to achieve the best soundproofing performance.

FAQs

What are sound isolation clips?
Sound isolation clips are engineered connectors that decouple plasterboard ceilings or walls from the building structure. By introducing a rubber‑isolated buffer, they prevent vibrations and structure‑borne noise from travelling directly through the timber joists or studs.

How do SilentCloud clips work?

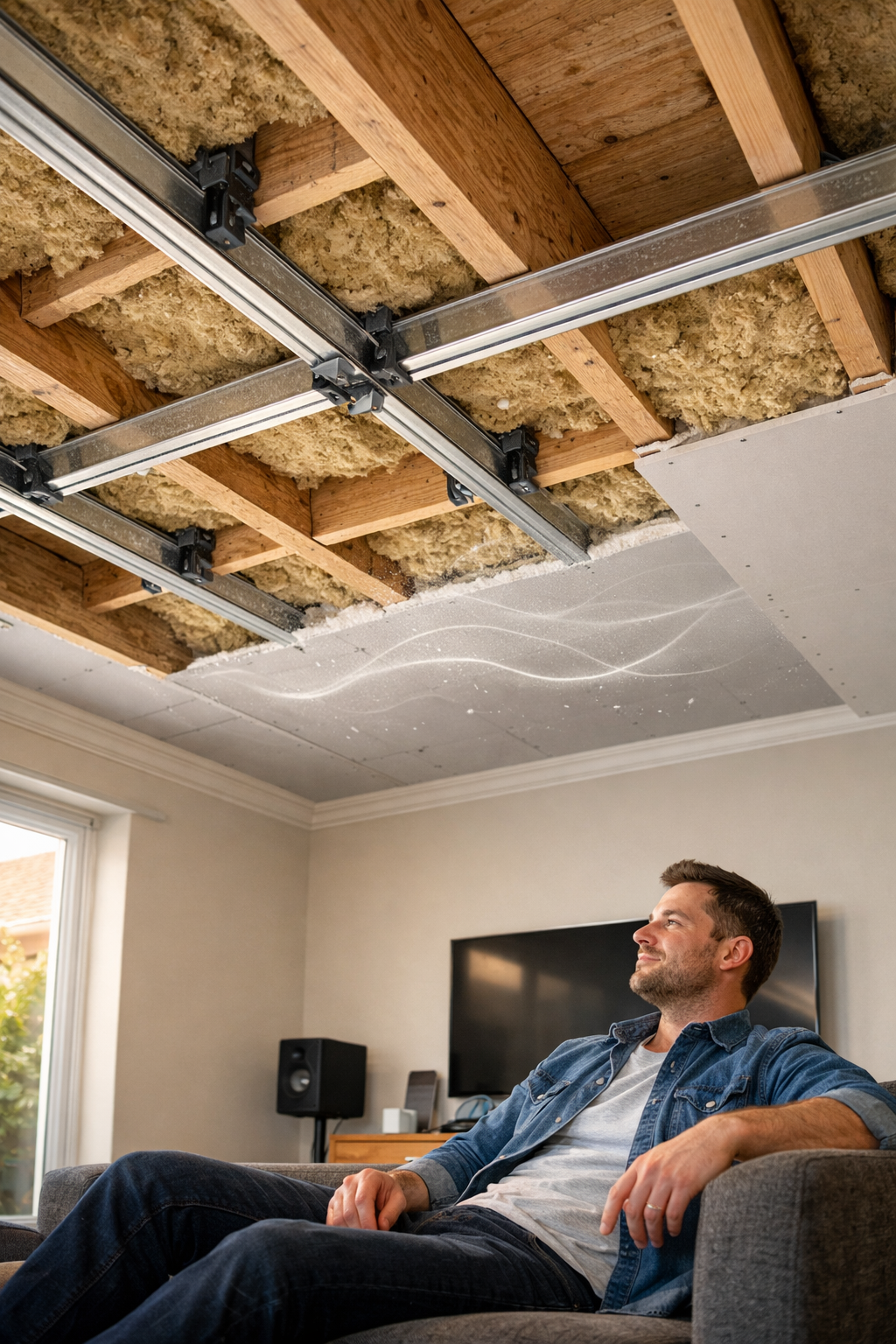

Each SilentCloud clip screws into a joist and holds a galvanised top‑hat channel through a rubber isolation element. This mechanical break absorbs vibration and resonance, allowing the ceiling to “floats” independently from the structure and dramatically reducing low‑frequency noise transmission.

How many clips do I need per square metre?
A box of 100 SilentCloud clips will typically cover 60 m² of ceiling when spaced correctly. For most domestic projects, this equates to roughly 1‑2 clips per square metre. Always follow the spacing guidelines supplied in the installation instructions.

Are SilentCloud clips suitable for walls as well as ceilings?
Yes. The same decoupling principle works for stud walls—just ensure the channels run perpendicular to the studs and maintain the specified spacing. This versatility means SilentCloud clips can be used throughout your project.

Do I still need resilient bars or battens?

 NwNo. SilentCloud clips and channels replace traditional resilient bars and timber battens, providing superior low‑frequency isolation and a slimmer build‑up without the risk of metal‑to‑timber contact.

Do they comply with UK Building Regulations?
SilentCloud clips are designed to meet and exceed Approved Document E sound insulation requirements for separating and internal floors. For larger projects, consult your local Building Control Officer to confirm compliance.
