SilentScreed® Panel 22 – High-Performance Acoustic Cement Overlay Board for Impact & Airborne Soundproofing (FFT5 Compliant)

SilentScreed® Panel 22 – High-Performance Acoustic Cement Overlay Board for Separating Floors (FFT5 Compliant)

The SilentScreed® Panel 22 is a high-performance acoustic cement particle overlay board engineered to reduce both impact and airborne sound transmission through separating floors. Designed for residential and commercial construction, it provides a durable, regulation-ready solution for soundproofing floors where performance, reliability, and ease of installation are essential.

Manufactured using a dense cement particle core, SilentScreed Panel 22 delivers consistent acoustic performance while creating a stable, smooth subfloor suitable for a wide range of final floor finishes. It can be installed over concrete slabs, existing timber decks, or directly onto timber joists, making it a versatile solution for both new build and refurbishment projects.

The system is fully compatible with Robust Details FFT5 floor constructions and integrates seamlessly with the wider SilentCloud acoustic system range, ensuring compliant and predictable results when installed correctly.

Technical Specifications

• Board dimensions: 1200mm × 600mm × 22mm

• Coverage per board: 1.44m²

• Weight per m²: 15kg

• Weight per board: 21.6kg

• Nominal thickness: 22mm

Finished Floor Level (FFL):

• Over concrete or timber deck: 26mm

• Over timber joists: 36mm

Acoustic Performance

• Impact sound insulation (LnTw): 55 dB

• Airborne sound insulation (DnTw): 55 dB

• Ctr: 49 dB

Performance values achieved in tested separating floor constructions.

Key Features & Benefits

• Reduces impact noise such as footfall and structure-borne sound

• Improves airborne sound insulation between rooms and floors

• FFT5 Robust Details compliant for separating floor structures

• Suitable for installation over concrete, timber decks, or joists

• Durable cement particle construction for long-term stability

• Creates a smooth, level surface ready for final floor coverings

• Contributes to thermal insulation and overall energy efficiency

• Compatible with SilentCloud perimeter isolation and bonding systems

Applications

• Apartments and multi-storey residential buildings

• Offices, hotels, and commercial premises

• Schools, colleges, and universities

• Healthcare and care facilities

• Home cinemas and media rooms

• Recording studios and creative spaces

• Industrial and mixed-use buildings

Installation Guidance

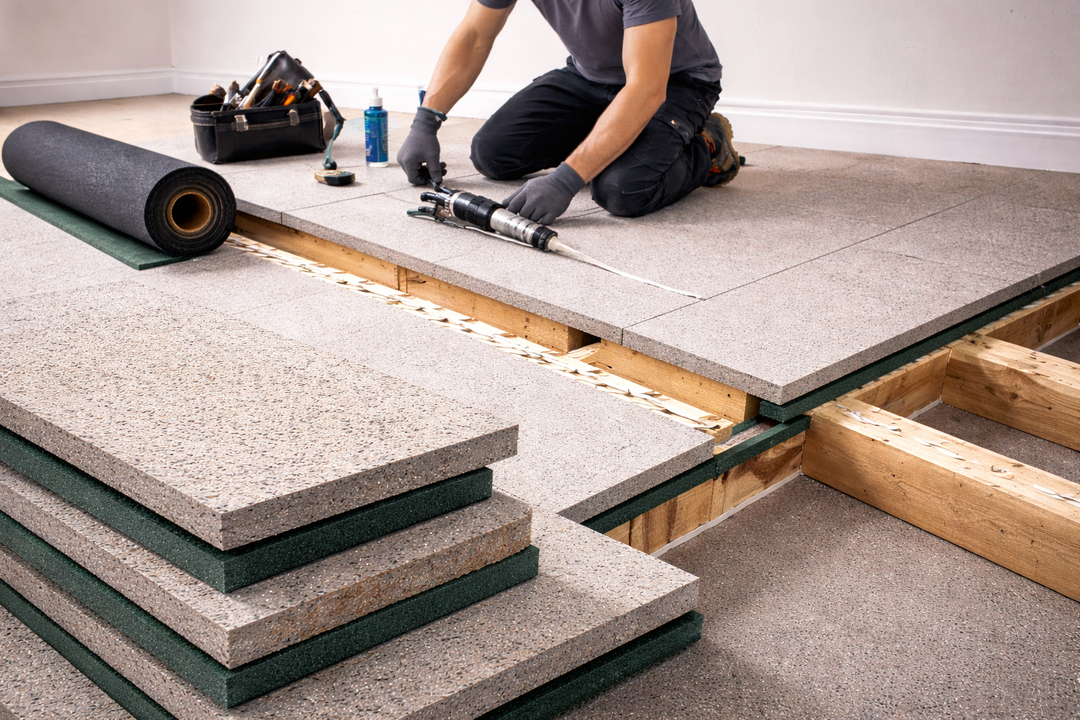

Install SilentScreed Panel 22 in a conventional broken-bond pattern.

When installing directly over timber joists, staple SilentCloud-10 Joist Strips to the joist tops prior to laying the panels. All tongue-and-groove joints must be bonded using SilentCloud-Bond Panel Adhesive. Maintain a 10–15mm expansion gap around all perimeters and seal using SilentCloud-Seal 20 Perimeter Seal, or install in accordance with Robust Detail FFT5 requirements.

Correct installation is essential to achieve the stated acoustic performance.

About SilentCloud Acoustics

SilentCloud Acoustics is a specialist manufacturer of acoustic insulation and soundproofing systems for the UK construction industry. Our products are engineered to meet or exceed current Building Regulation requirements and are supported by an experienced technical team offering guidance from specification through to installation.

Please note this product has minimum order for 10 boards
