Description
Slim Acoustic Overlay Board for Impact Sound Control
SilentScreed™ Panel 18 is a versatile acoustic insulated overlay board designed for soundproofing and insulating separating floors, with a primary focus on impact sound reduction.
It is specifically intended for use where an 18 mm overlay solution is required to improve acoustic performance while maintaining a low floor build-up, making it suitable for a wide range of residential, commercial, and specialist applications.
Construction
SilentScreed™ Panel 18 is manufactured from:
-
18 mm high-density P5 moisture-resistant tongued and grooved chipboard
The board provides a stable, durable overlay that contributes to improved acoustic performance when installed as part of a compliant floor system.
Technical Specifications
• Board type: Acoustic insulated overlay board
• Material: 18 mm High-Density P5 Moisture Resistant T&G chipboard
• Overall board dimensions: 1200 mm × 600 mm × 18 mm
• Area per board: 1.44 m²
• Weight per m²: 15 kg
• Weight per board: 21.6 kg
• Overall nominal thickness: 18 mm
Finished Floor Level (FFL):
• Over concrete or timber deck: 26 mm
• Over timber joists: 36 mm
Acoustic Performance (Tested)
SilentScreed™ Panel 18 has been tested for acoustic performance and achieves the following results:
• Impact (LnT,w): 55 dB
• Airborne (DnT,w): 55 dB
• CTR: 49 dB
Performance is dependent on correct installation and overall floor construction.
Features & Benefits
• Reduces impact noise and improves acoustic performance
• Slim 18 mm overlay solution for height-restricted projects
• Can be installed over concrete, existing timber floors, or directly over joists
• Compatible with a range of SilentCloud™ systems
• Compliant with Robust Details FFT5 floor structures
• Durable P5 moisture-resistant construction
• Suitable for residential and commercial applications
• Enhances thermal performance
• Contributes to improved energy efficiency
• Provides a smooth, level surface for final floor finishes
• Helps minimise both airborne and impact sound transmission
Applications
Residential Buildings
Apartments, condominiums, and multi-storey housing.
Commercial Buildings
Offices, hotels, and restaurants where acoustic control is required.
Educational Institutions
Schools, colleges, and universities.
Healthcare Facilities
Hospitals and clinics requiring quieter environments.
Recording Studios
Improves sound isolation and reduces unwanted noise.
Home Theatres
Enhances acoustic performance and sound containment.
Industrial Buildings
Reduces noise transmission between areas.

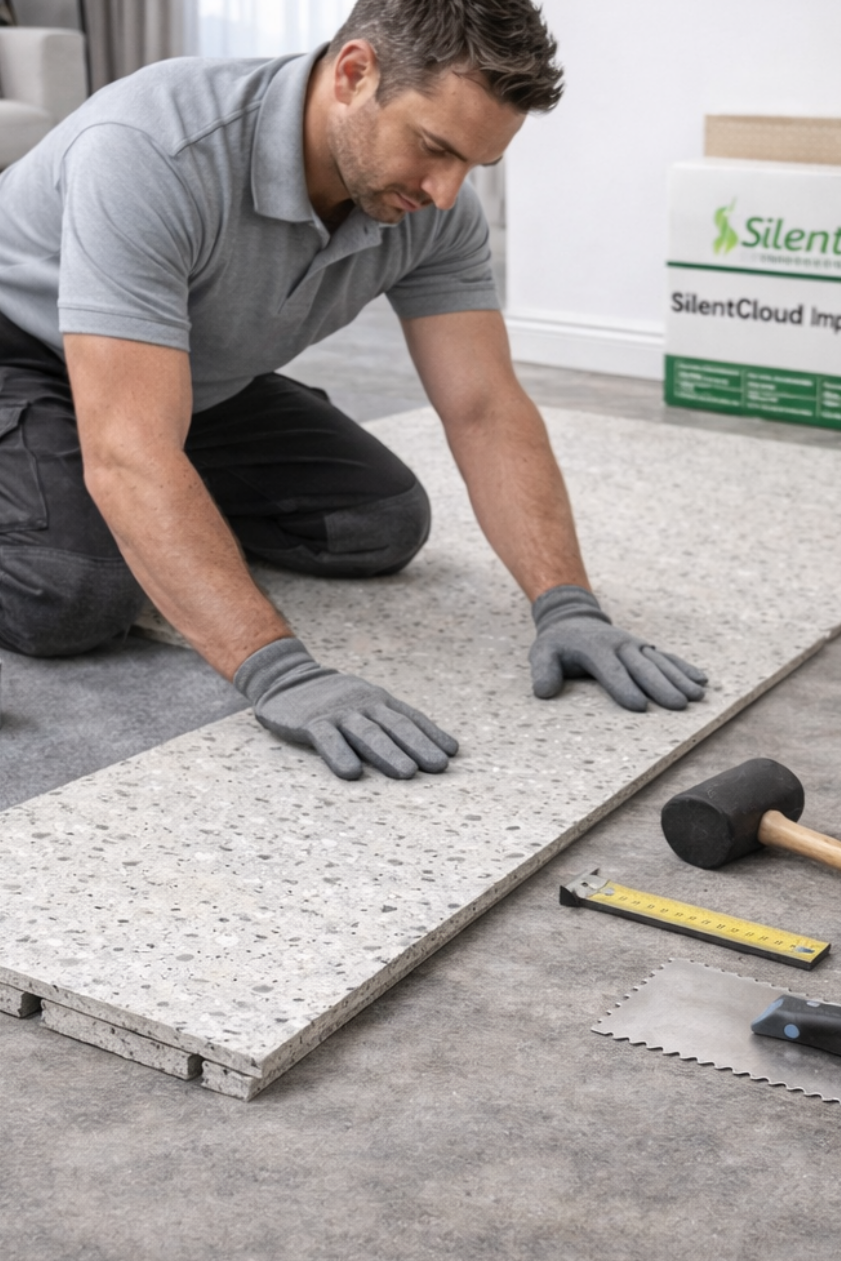

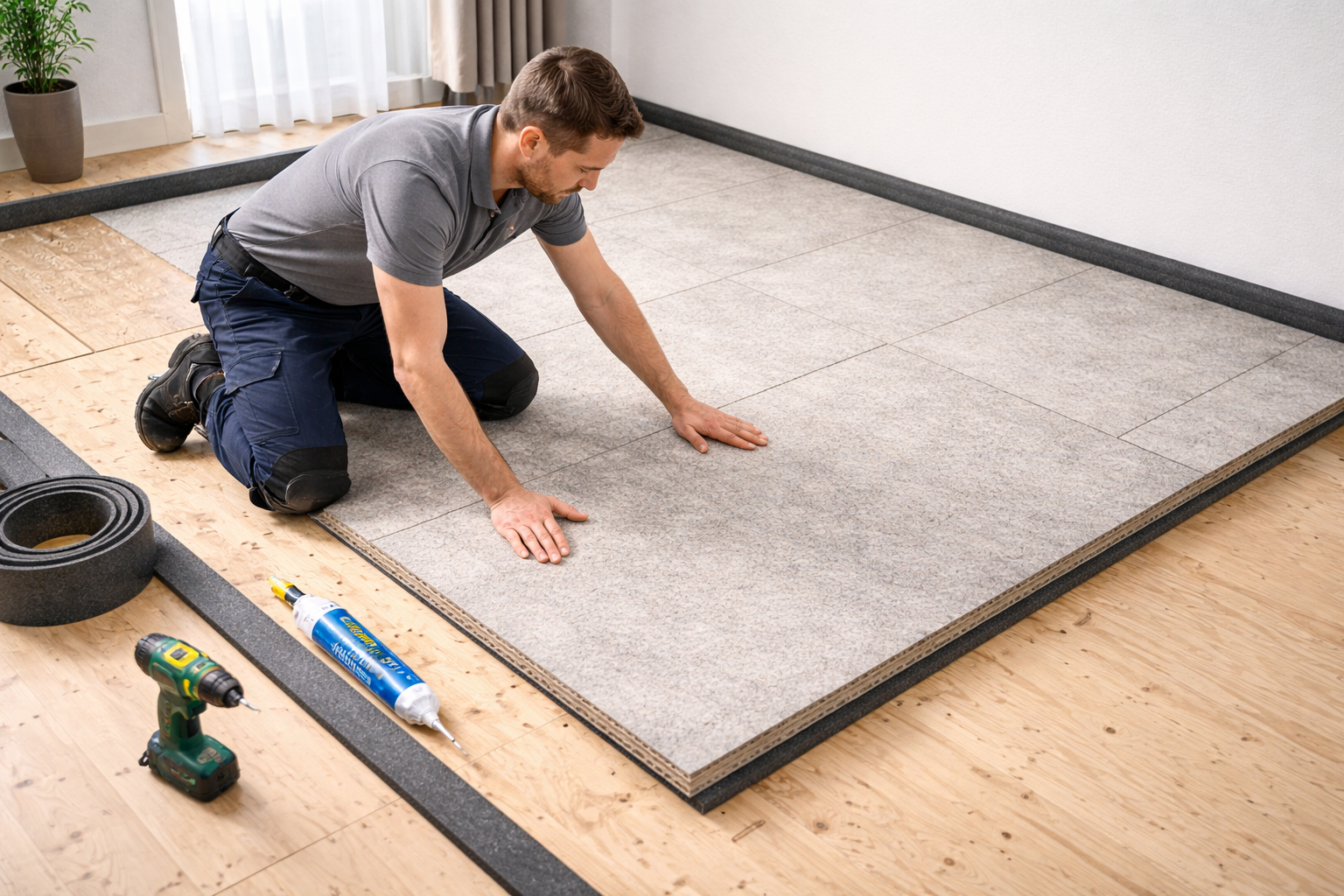

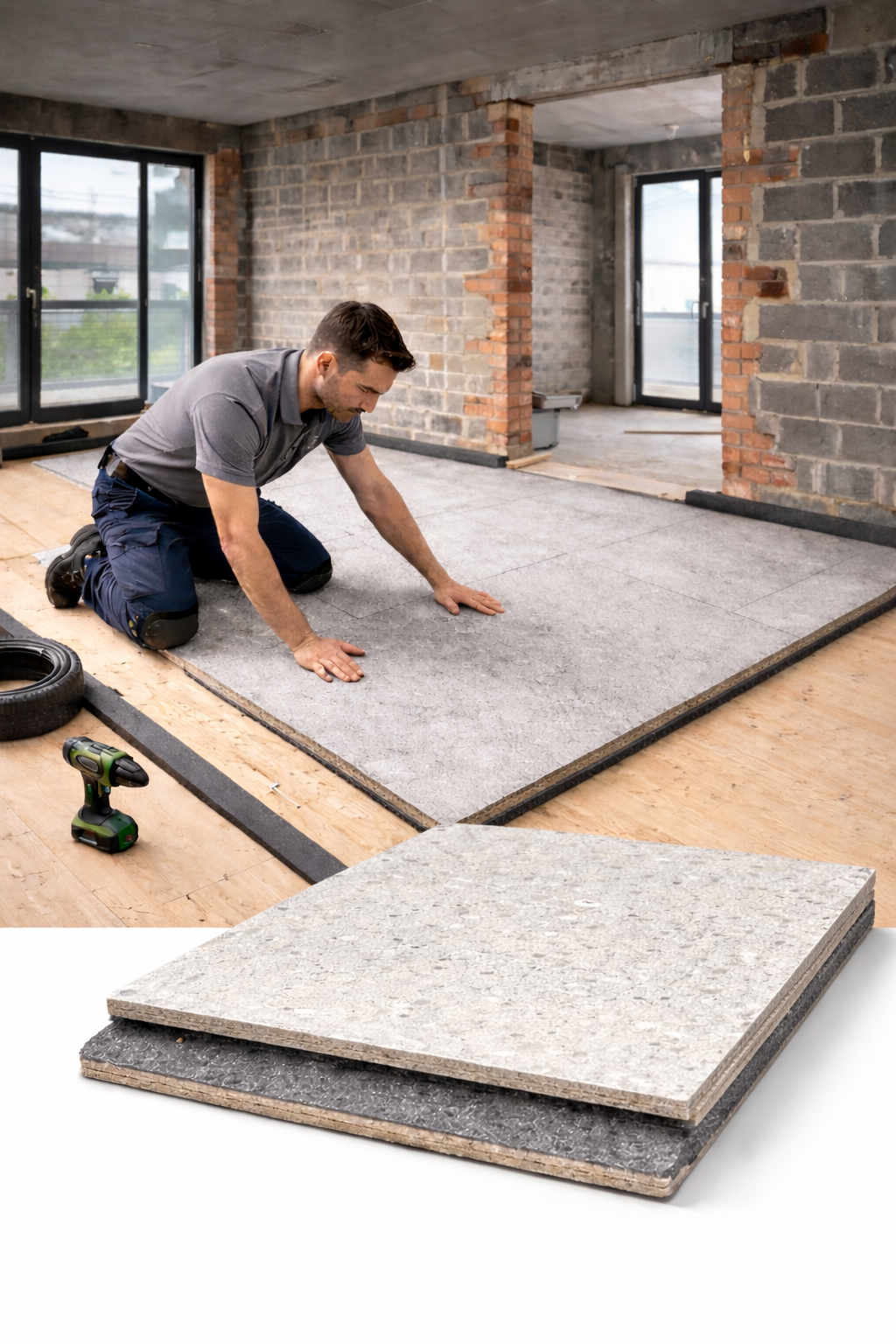

Installation
• Lay boards in a conventional broken-bond pattern
• When installing directly over joists, staple SilentCloud-10 Joist Strips to the joist tops before application
• Glue all tongue-and-groove joints using SilentCloud-Bond Panel Adhesive
• Leave a 10–15 mm expansion gap around all perimeters
• Seal perimeters using SilentCloud-Seal 20 Perimeter Seal or follow Robust Detail instructions
Full fitting instructions are supplied with the product and can be downloaded from the Installation Guides section.
Installation Tips
• Boards may be laid over concrete, timber decks, or joists
• Maintain expansion gaps at all perimeters
• Seal joints and perimeters to prevent acoustic flanking
• Ensure the subfloor is clean, dry, and level prior to installation
Building Regulations & Compliance
SilentScreed™ Panel 18 is suitable for use within UK Building Regulations compliant floor systems, including:
• Robust Details FFT5
• Approved Document E (England & Wales)
• Section 5 (Scotland)
• Part G (Northern Ireland)
About SilentCloud Acoustics
SilentCloud Acoustics is a specialist manufacturer of soundproofing and acoustic insulation products, committed to delivering high-quality, regulation-compliant solutions. All products are precision-engineered and supported by a dedicated technical team throughout your project.
This product has minimum order of 10 pieces.
